Slitter Rewinders

Industrial Slitter Rewinder Machines

Compare Three Dual Shaft Slitter Rewinder Platforms by Material, Web Width, Roll Size, Mechanical Speed and Production Workflow. Achievable Production Results Depend on Material and Operating Conditions.

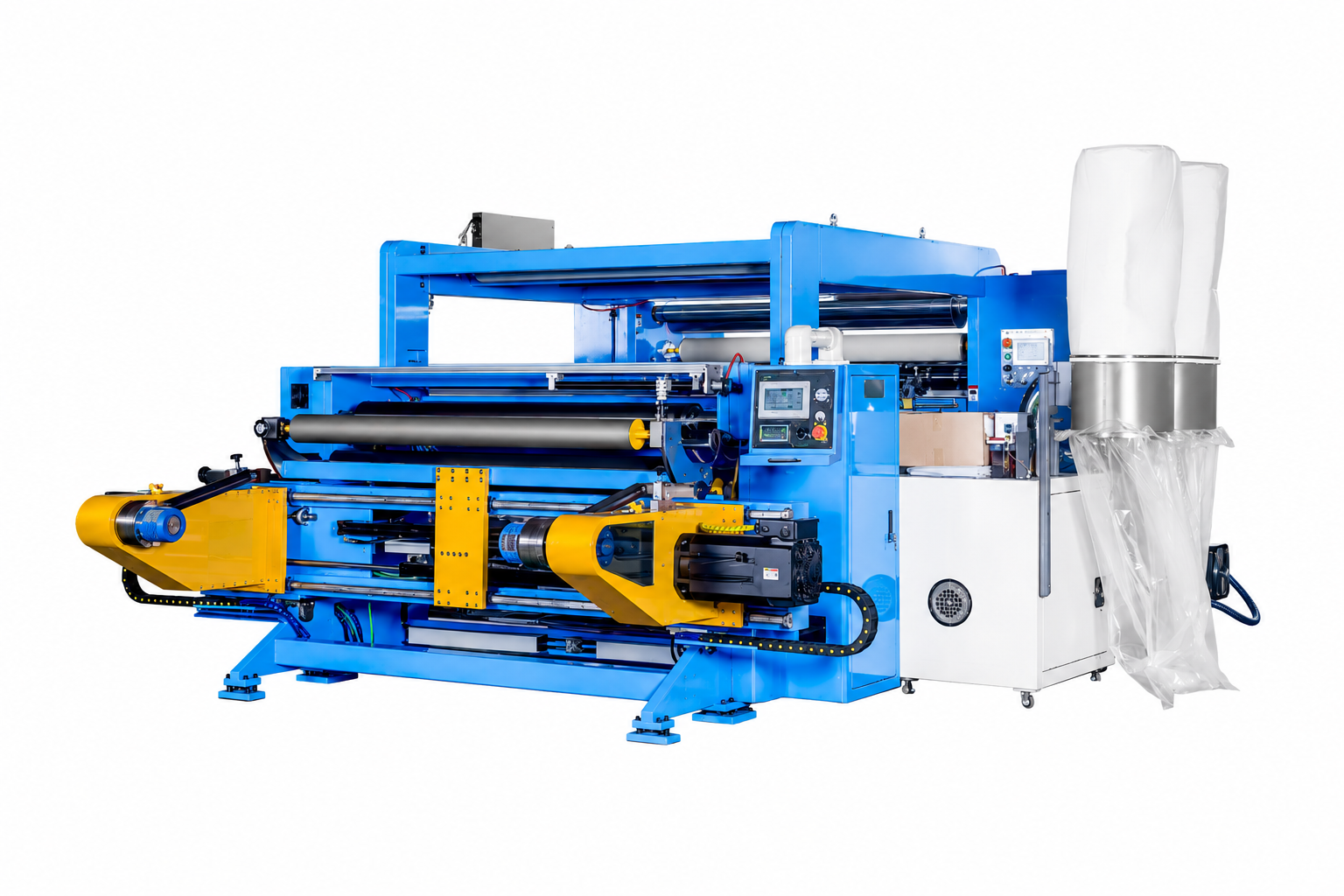

CLS-A8

Heavy-duty dual shaft slitter rewinder for wide webs, large rolls and high-output production across paper, specialty paper, film, labelstock, flexible packaging and aluminum coil.

Max Web Width 1600–2700 mm

Mechanical Speed 800 m/min standard; 900/1000 m/min optional

Max. Rewind Roll Dia. 1500 mm

Slitting Accuracy ±0.1 mm

Max. Unwind Roll Dia. 1800 mm

Machine Weight 12,000 kg

Typical Materials Paper, specialty paper, film, labelstock, flexible packaging, aluminum coil

View CLS-A8 Details ›

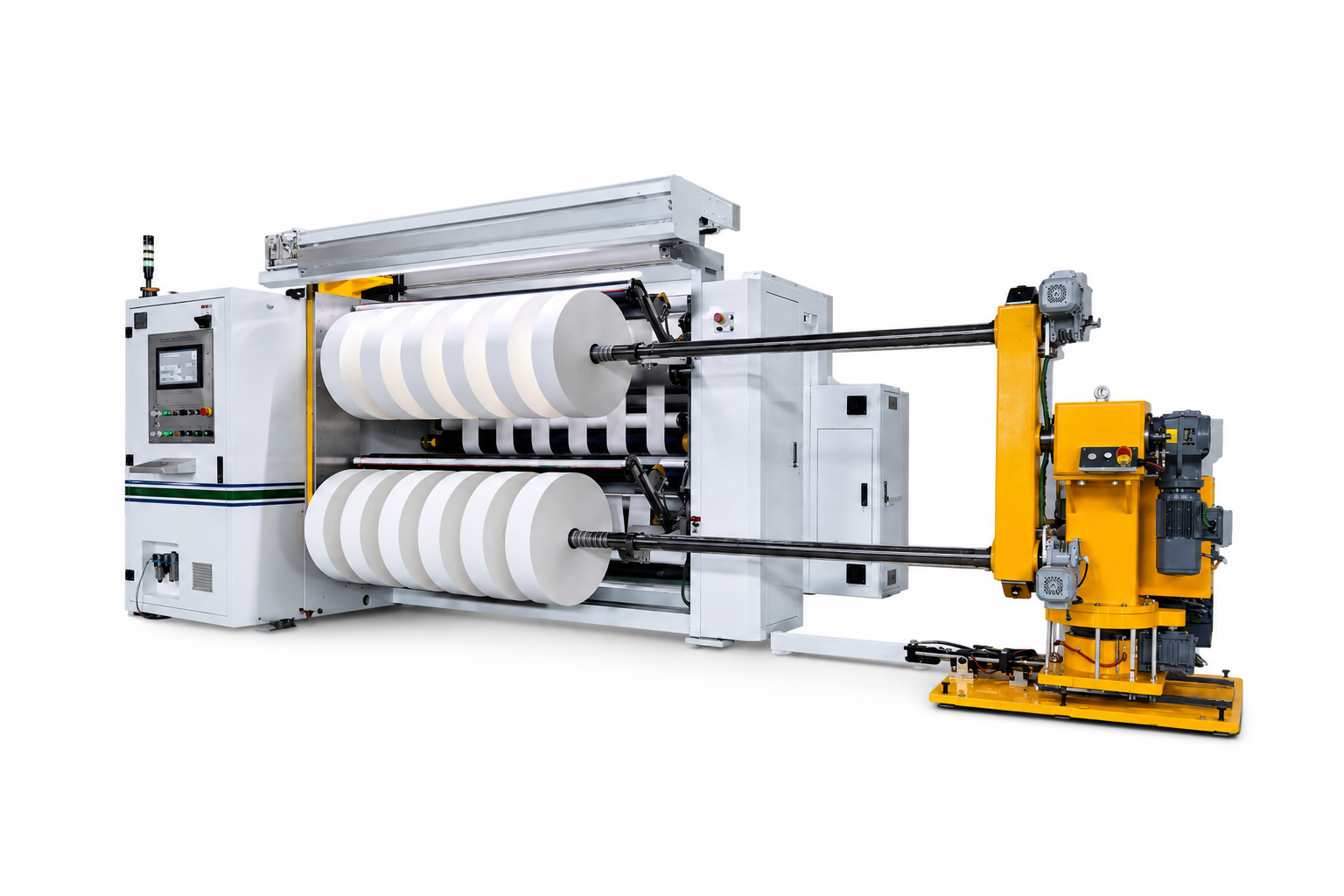

SF-850

Flexible dual shaft slitter rewinder for film, labelstock and flexible packaging, with 850 mm rewind rolls and medium-to-high-volume production.

Max Web Width 1300–1600 mm

Mechanical Speed 600 m/min standard

Max. Rewind Roll Dia. 850 mm

Slitting Accuracy ±0.1 mm

Max. Unwind Roll Dia. 1500 mm

Machine Weight 10,500 kg

Typical Materials Film, labelstock, flexible packaging

View SF-850 Details ›

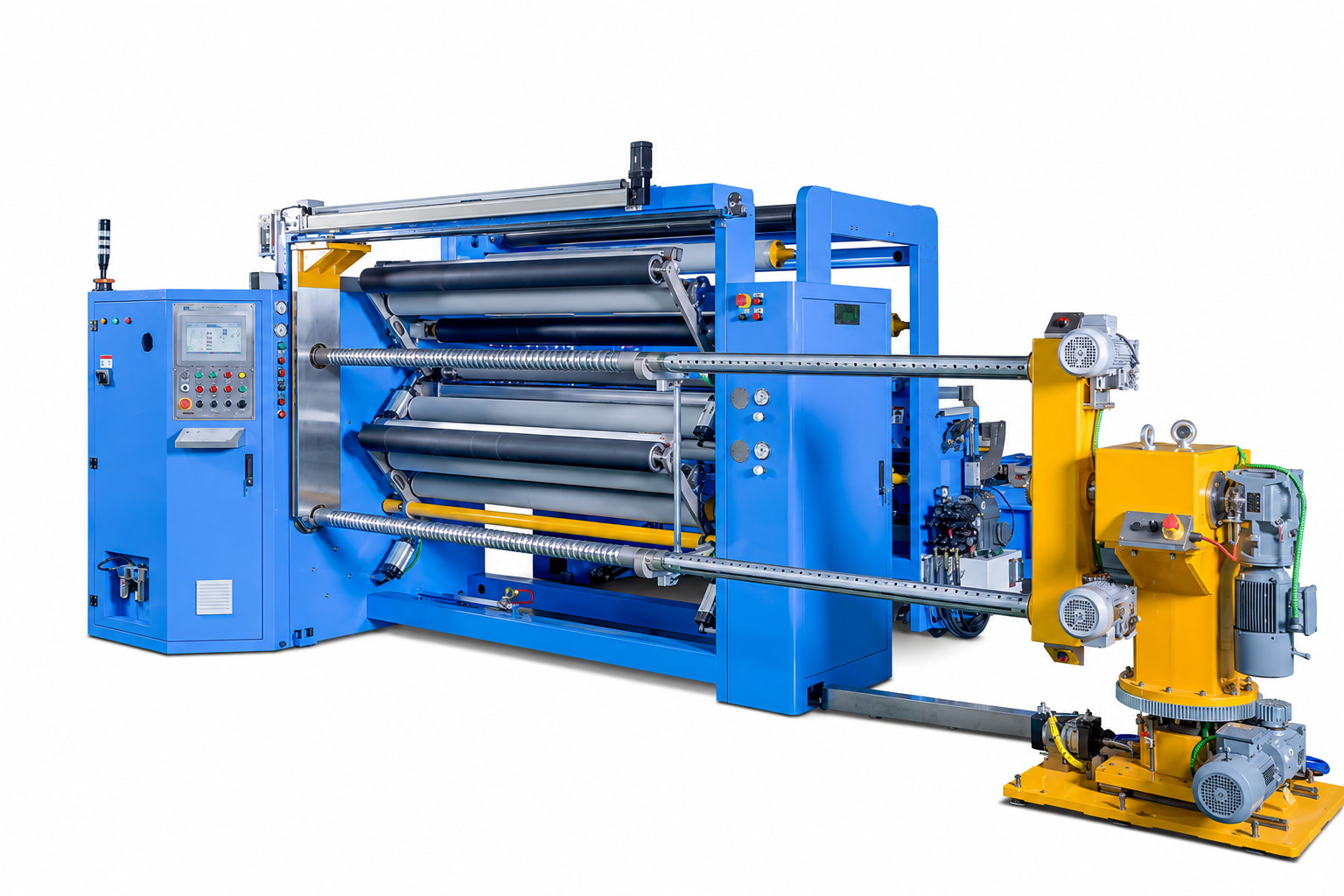

SF-650

Essential dual shaft slitter rewinder for film, labelstock and flexible packaging, with 650 mm rewind rolls and lower-volume production.

Max Web Width 1300–1600 mm

Mechanical Speed 400 m/min standard

Max. Rewind Roll Dia. 650 mm

Slitting Accuracy ±0.1 mm

Max. Unwind Roll Dia. 1200 mm

Machine Weight 5,500 kg

Typical Materials Film, labelstock, flexible packaging

View SF-650 Details ›

Engineering Advantages Across the JuYou Range

Shared Technologies Across Three Platforms, Configured Around Material and Production Requirements.

Optional Automatic Knife Positioning

Faster slit-width changeovers with less manual setup. Configuration varies by model.

Siemens Drive & Control — All Models

Siemens servo, inverter, relay and PLC systems are standard across CLS-A8, SF-850 and SF-650.

Dual-Mode Tension Control

Switchable open- and closed-loop control adapts to different materials and operating conditions.

Before You Select a Slitter Rewinder

Which JuYou Slitter Rewinder Should I Choose?

Start with material structure and thickness, web width, parent-roll size and weight, finished-roll diameter, slit pattern, target output and roll-handling needs. The CLS-A8 is designed for wider webs, larger rolls and heavier-duty production; the SF-850 for flexible medium-to-high-volume converting; and the SF-650 for smaller rewind rolls and practical daily production. The same material may fit more than one platform.

Is Mechanical Speed the Same as Stable Production Speed?

No. Mechanical speed is the machine’s rated capability, not a guaranteed production speed. Stable operating speed depends on material structure and thickness, web width, slit pattern, roll diameter, tension settings and finished-roll quality requirements. JuYou therefore separates machine specifications from factory tests, commissioning results and customer-site operating evidence.

What Production Data Should I Provide for Machine Selection or a Quotation?

Please provide material structure and thickness, or basis weight for paper, plus web width, parent-roll diameter and weight, core size, finished-roll diameter and weight, slit widths or lane count, target production speed, quality requirements, and any special roll-handling or process-integration needs. Material samples are also helpful when a production trial is required.
